Description
A high performance, audio signal transformer for microphone level input applications. Useful for providing a -22 dB gain for any high impedance input. Suitable for any source balanced or unbalanced not exceeding 2.5kΩ.
Ratio: 12:1
Impedance: 29k:200

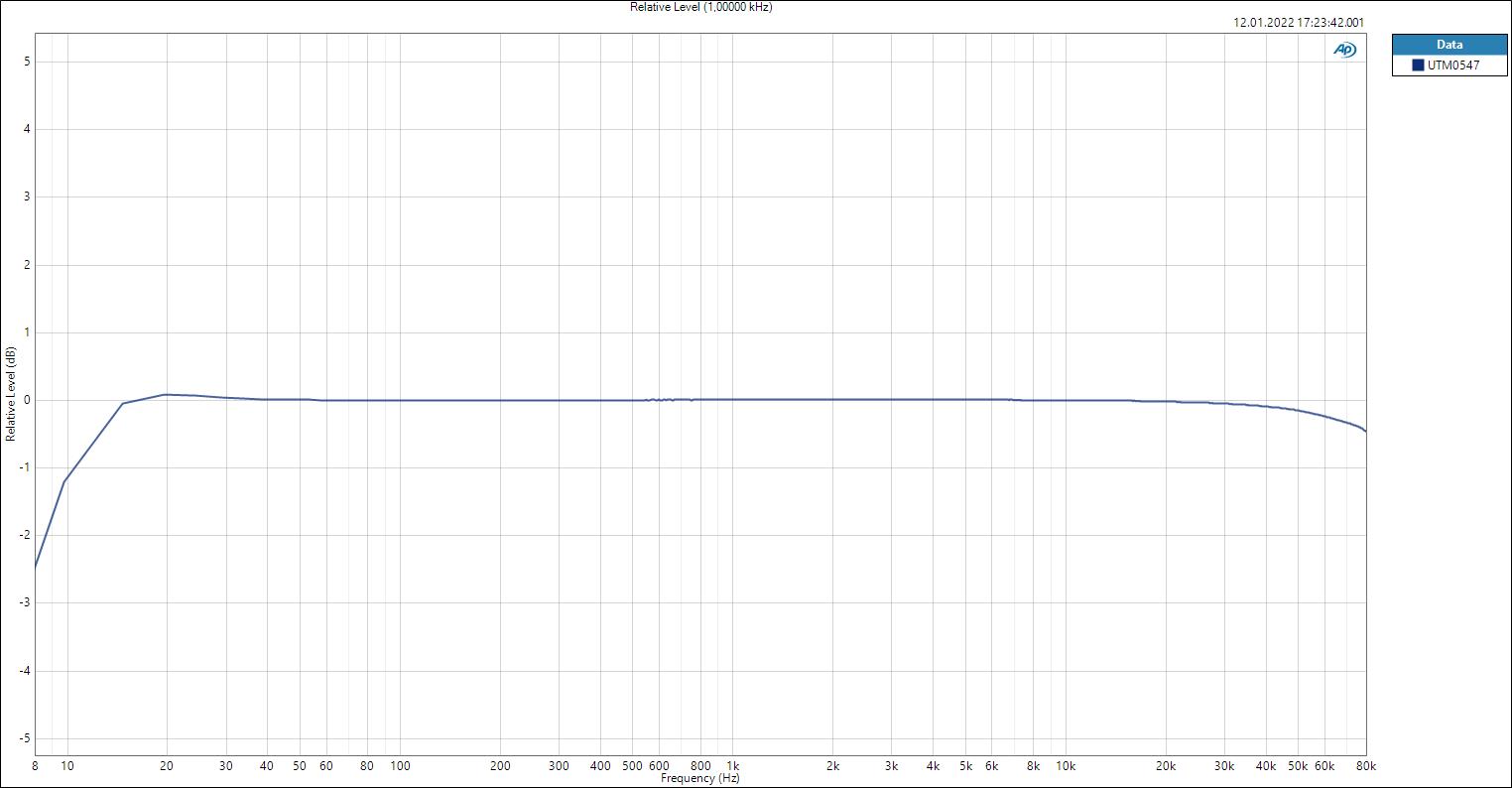

Frequency Response @50Ω source, 2kΩ load: +/- 0.3 dB 15 Hz to 80 kHz (Ap)
Primary Inductance: 1940H@100Hz
Primary Inductance: 8H@100Hz
Total DC Resistance PRI: 1400Ω
Total DC Resistance SEC: 40Ω

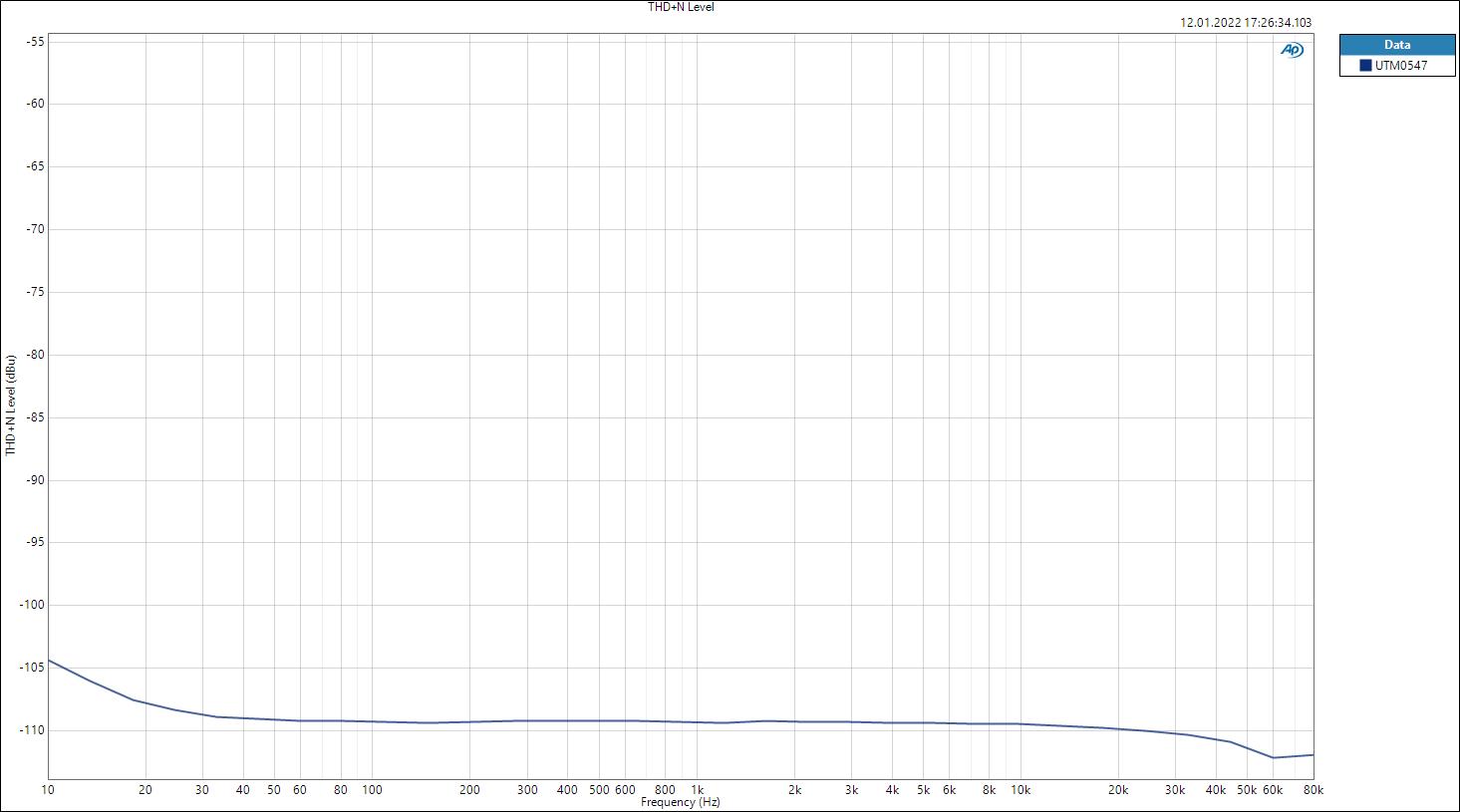

Max Level: @50Hz: +14 dBu
Mu-Metal, High Nickel Core, 79% Nickel Steel lamination
Red*-Blk – Primary (Tube side)
Blu*-Grn – Secondary (XLR side)
Yel – Shield
* – begin
Additional information
| Weight | 0.2 kg |
|---|
