UTM0547

Description

A high performance, audio signal transformer for microphone level input applications. Useful for providing a -16 dB gain for any high impedance input. Suitable for any source balanced or unbalanced not exceeding 2.5kΩ.

Ratio: 6.5:1
Impedance: 8.5k:200Ω

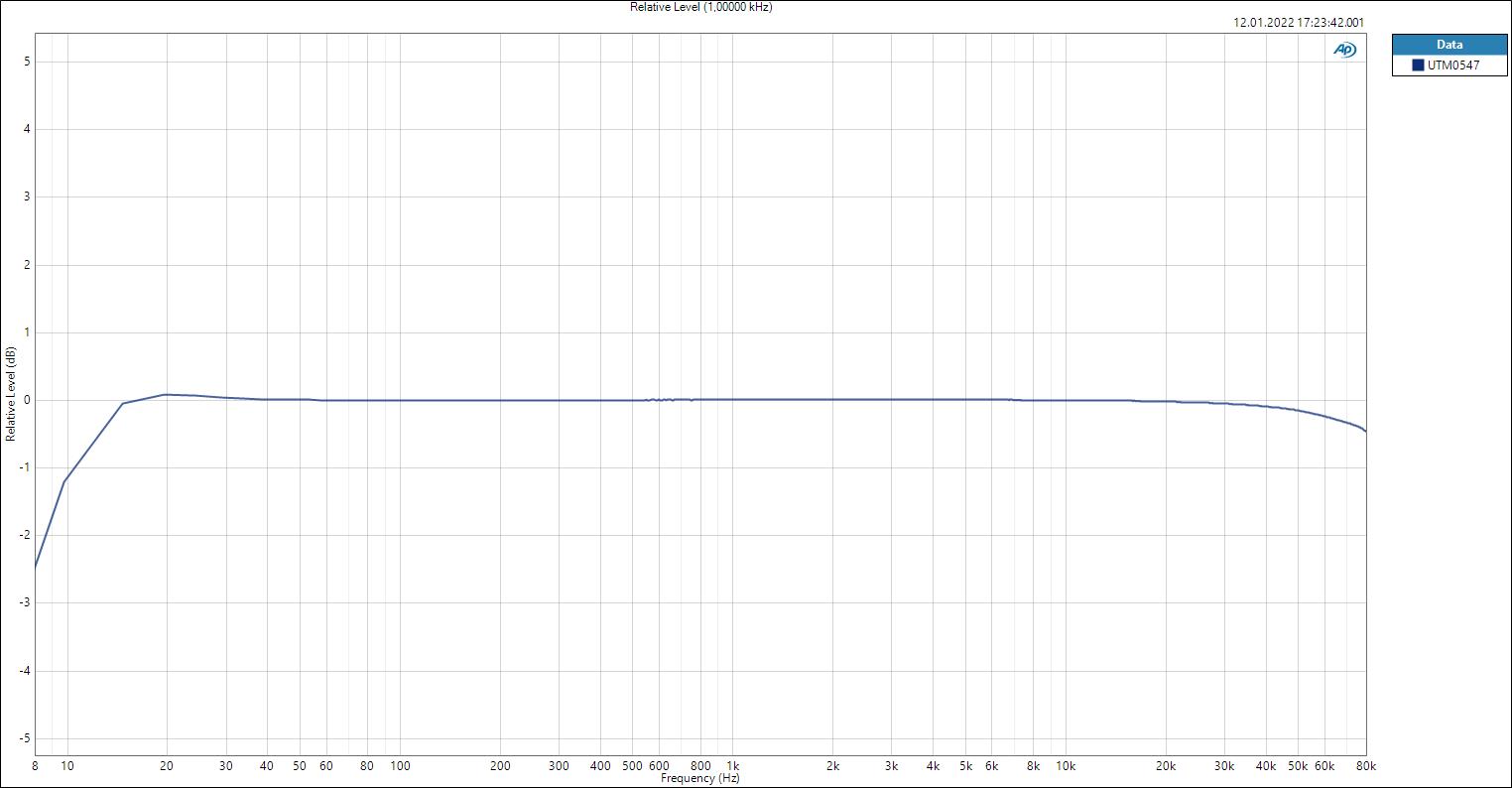

Frequency Response @1kΩ source 1kΩ load: +/- 0.3 dB 15 Hz to 80 kHz (Ap)
Primary Inductance: 645H@100Hz
Secondary Inductance: 8H@100Hz
Total DC Resistance PRI: 390Ω
Total DC Resistance SEC: 34Ω
Max Level: @50Hz: +14 dBu

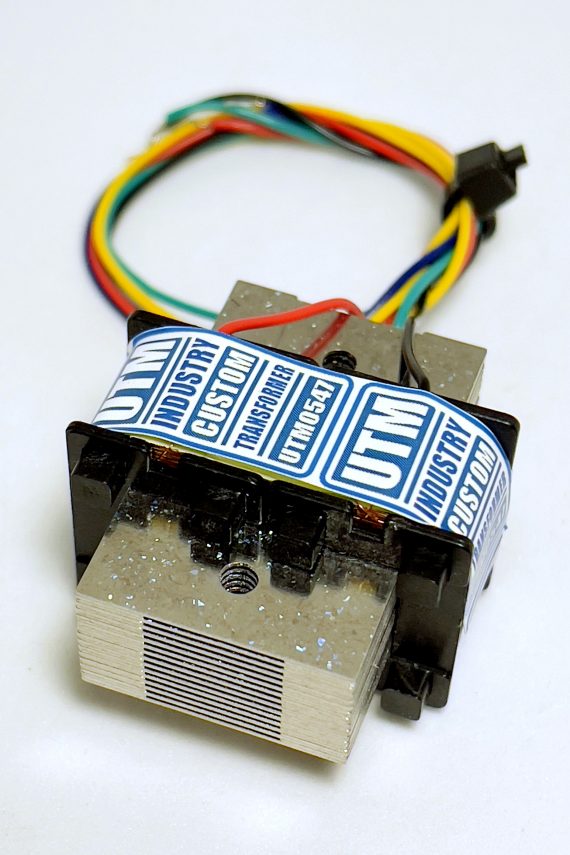

Mu-Metal, High Nickel Core, 79% Nickel Steel lamination
Red*-Blk – Primary (Tube side)
Blu*-Grn – Secondary (XLR side)
Yel – Shield
* – begin
