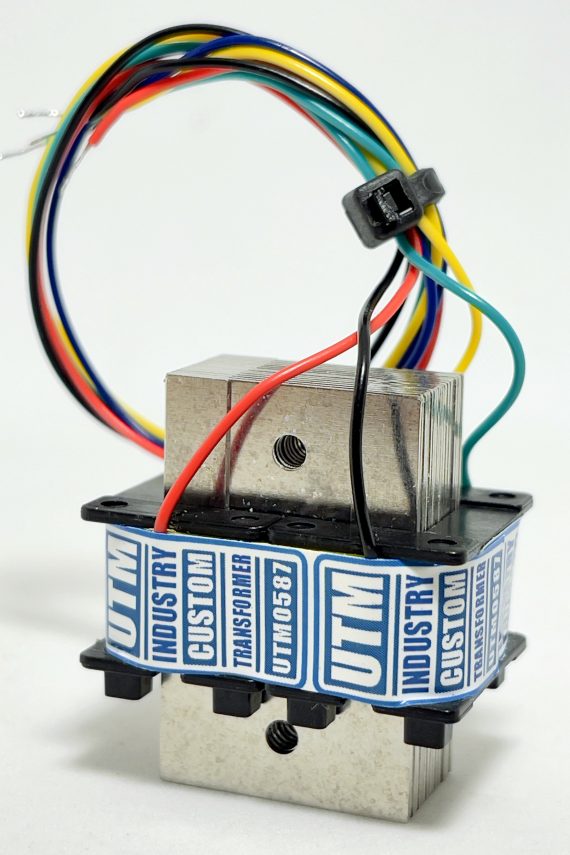

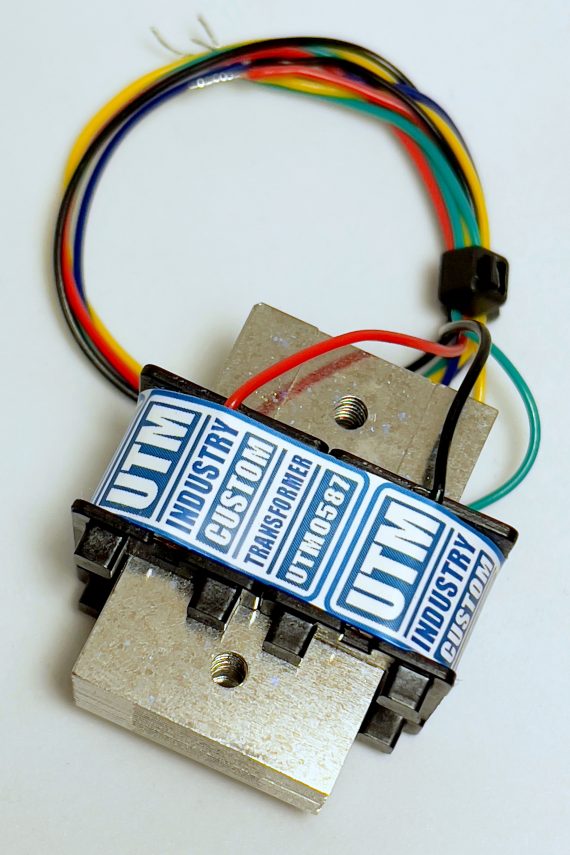

UTM0587
This is 9.5:1, U87 Neumann replacement microphone transformer.
Description
A high performance, audio signal transformer for microphone level input applications. Useful for providing a -20 dB gain for any high impedance input. Suitable for any source balanced or unbalanced not exceeding 2.5kΩ.
Ratio: 9.5:1
Impedance: 16k:200
Frequency Response @1kΩ source 1kΩ load: +/- 0.3 dB 15 Hz to 80 kHz (Ap)
Primary Inductance: 600H@100Hz
Secondary Inductance: 3.3H@100Hz
Total DC Resistance PRI: 400Ω
Total DC Resistance SEC: 22Ω
Max Level: @50Hz: +14 dBu
Mu-Metal, High Nickel Core, 79% Nickel Steel lamination
Additional information
| Weight | 0.2 kg |
|---|
