UTM0567

Description

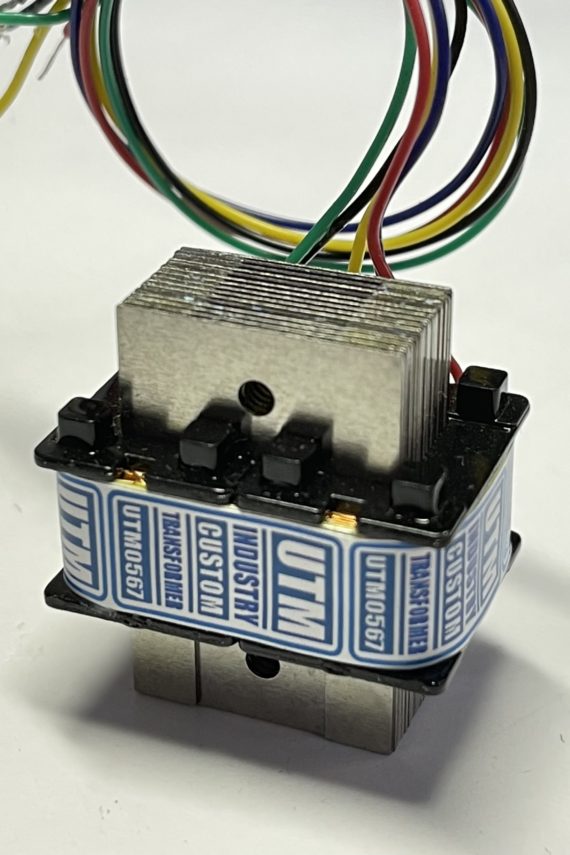

UTM0567.PDF A high performance, audio signal transformer for microphone level input applications. Useful for providing a -27, -16 dB gain for any high impedance input. Suitable for any source balanced or unbalanced not exceeding 2.5kΩ.

Ratio: 22:1, 6.9:1
Impedance: 100k:200:50

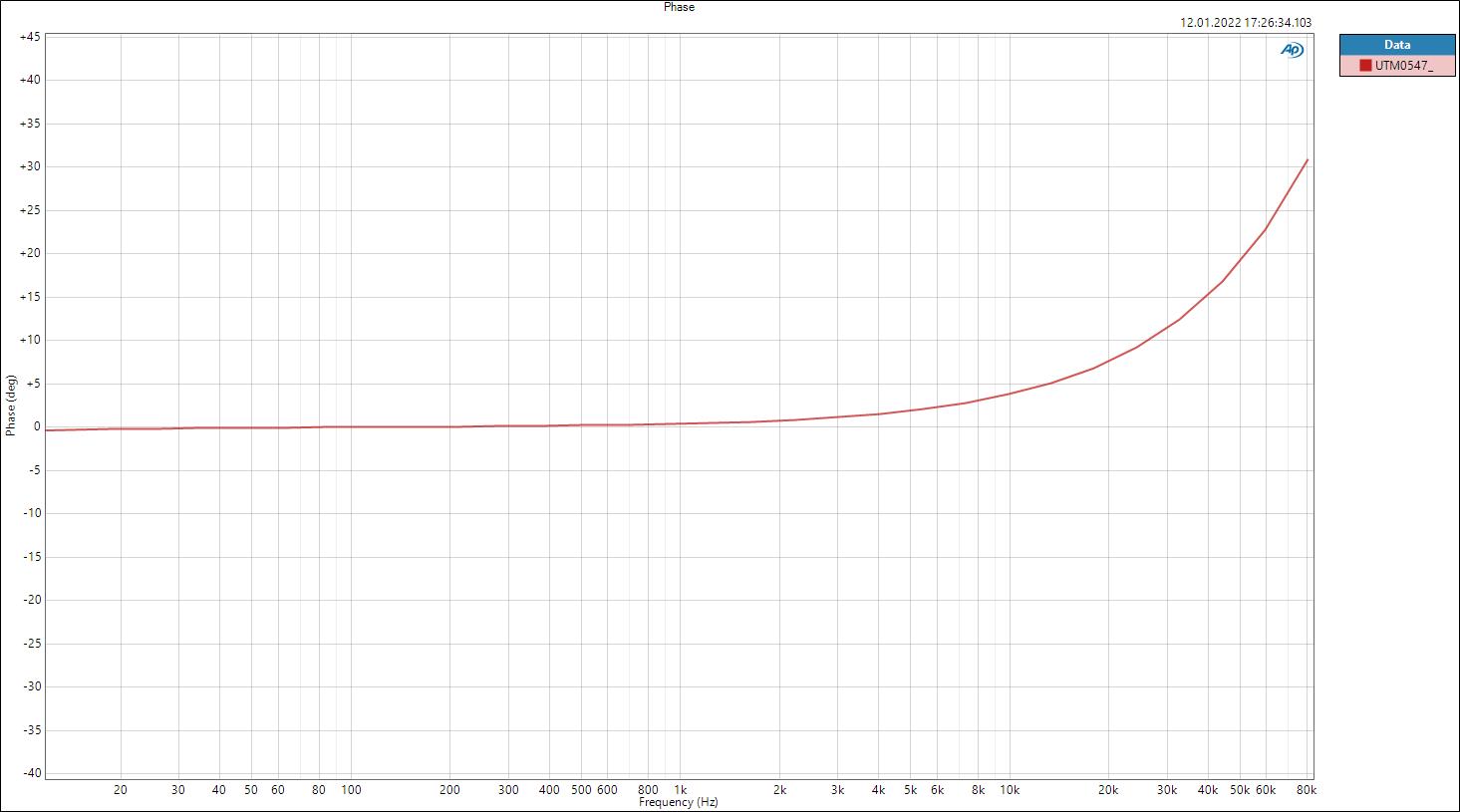

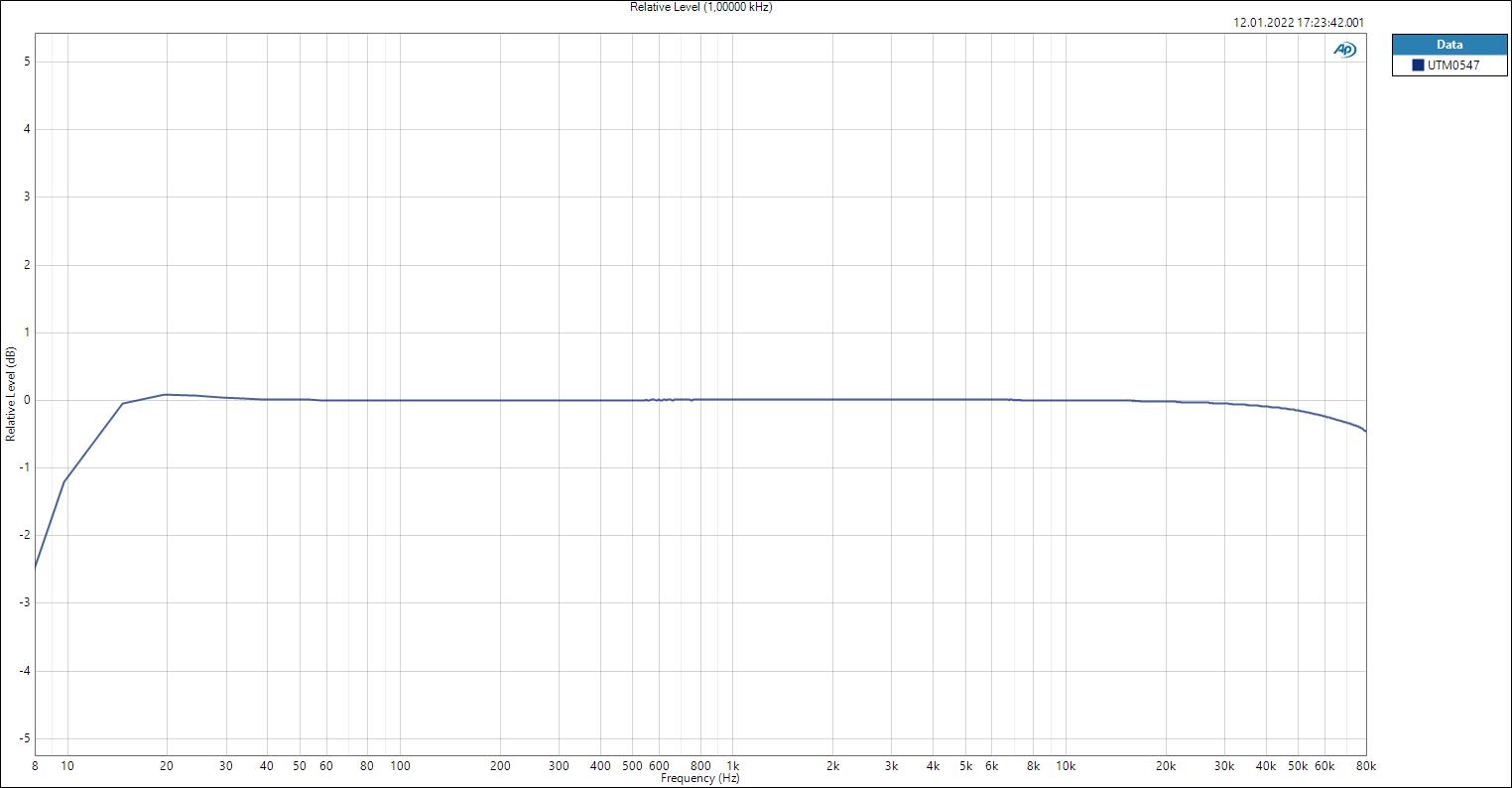

Frequency Response @50Ω source, 2kΩ load: +/- 0.3 dB 15 Hz to 80 kHz (Ap)
Primary Inductance: 1000H@100Hz
Secondary Inductance: 8H@100Hz
Total DC Resistance PRI: 1kΩ
Total DC Resistance SEC: 62Ω
Total DC Resistance TER: 22Ω

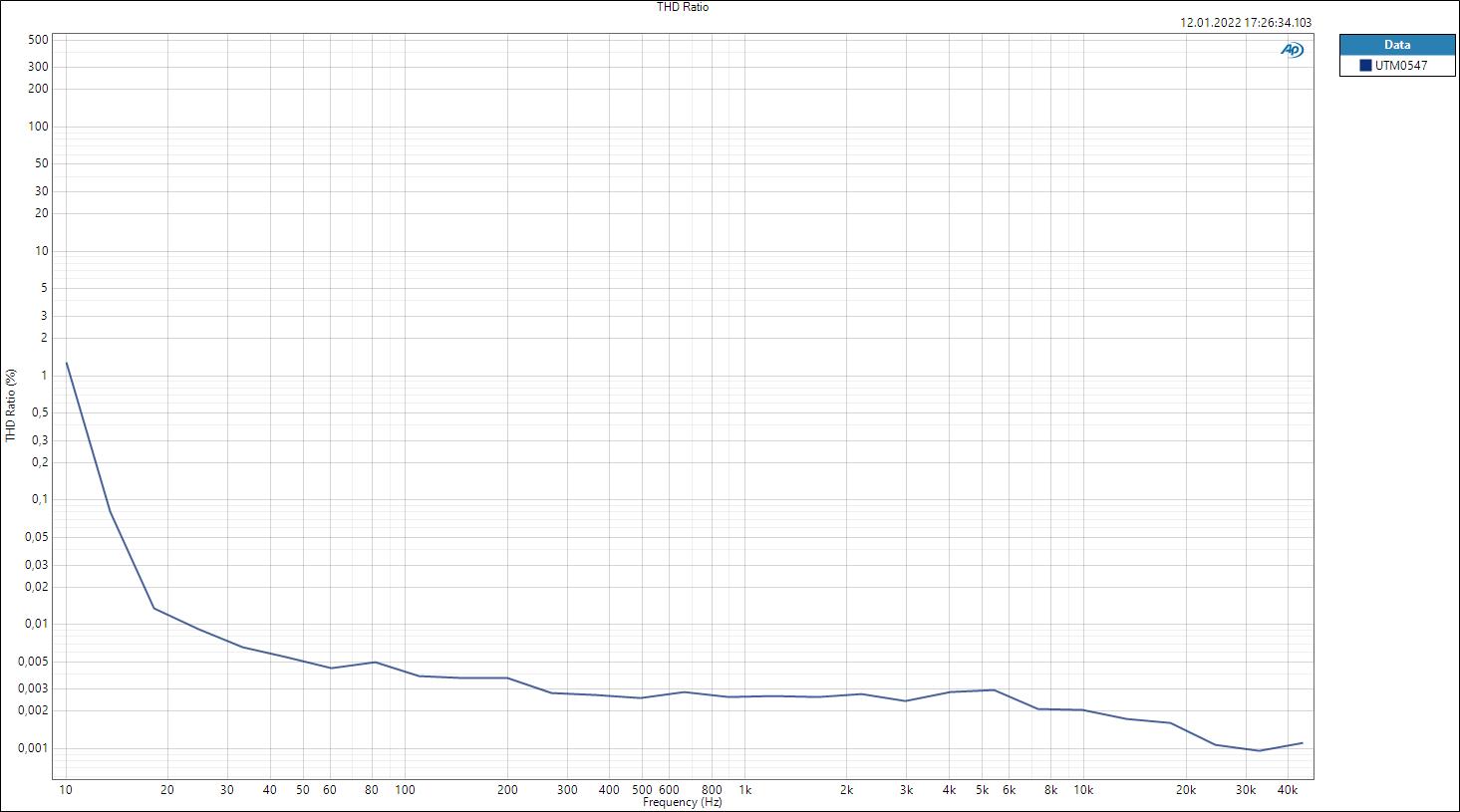

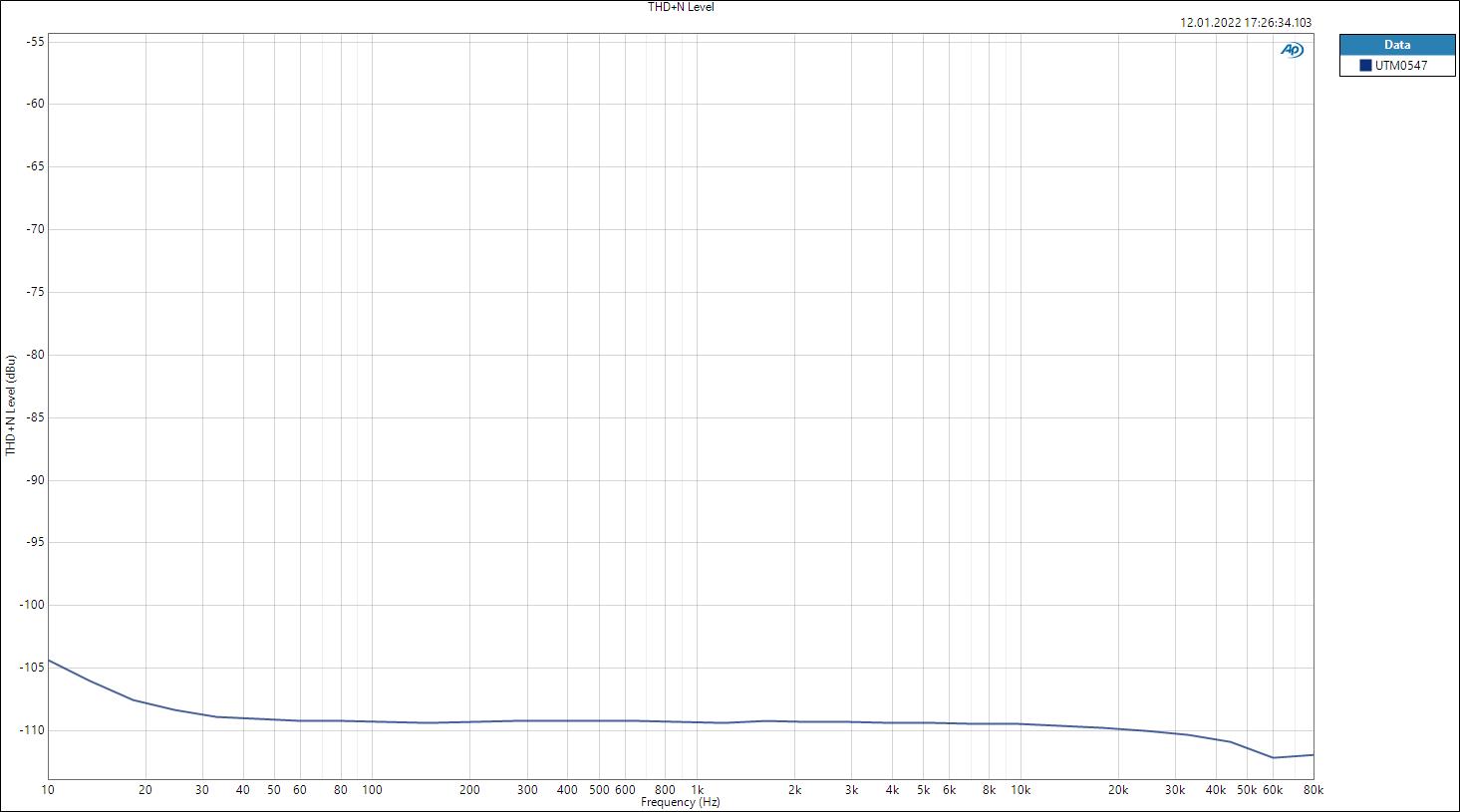

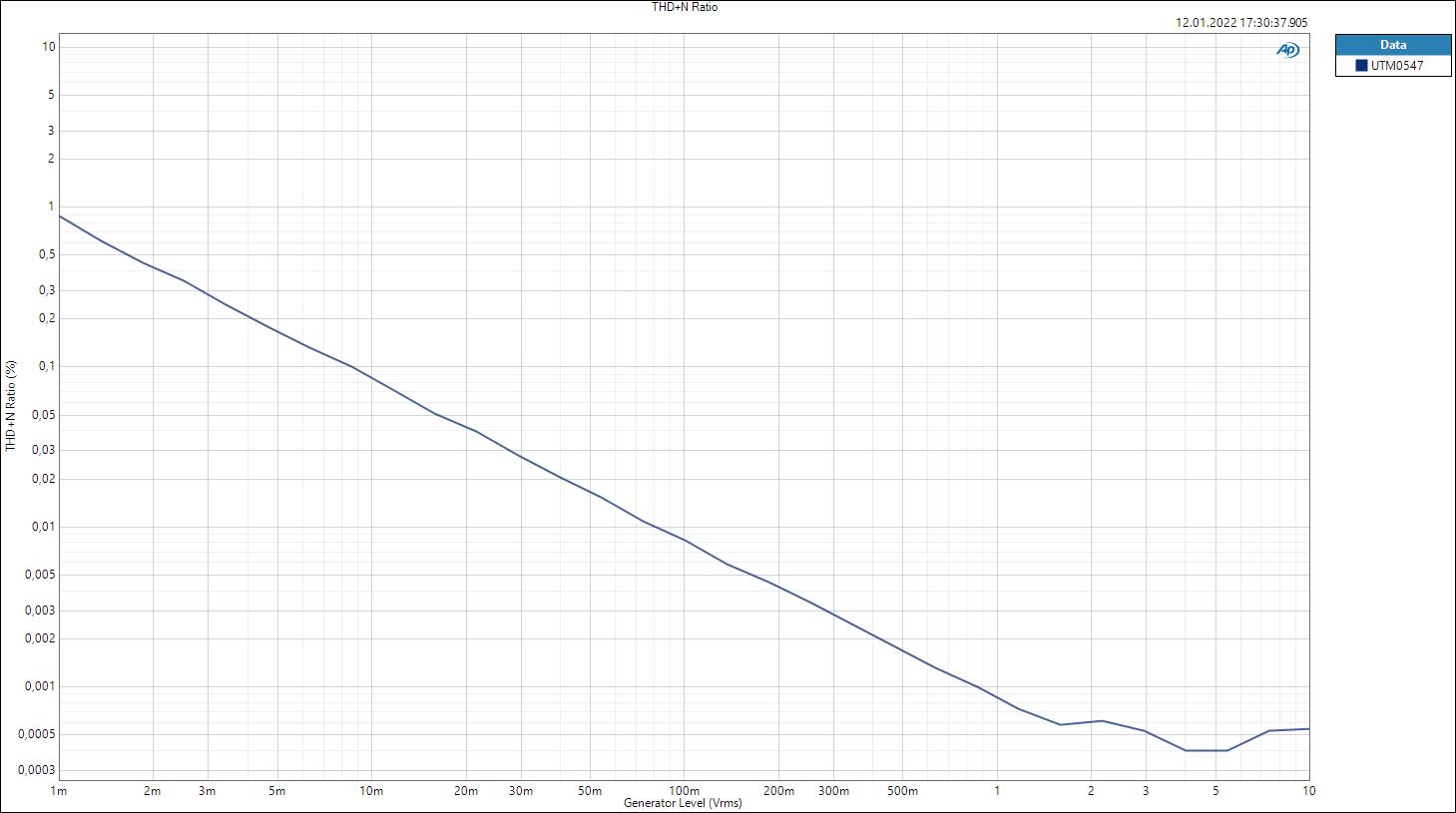

Max Level: @50Hz: +14 dBu
Mu-Metal, High Nickel Core, 79% Nickel Steel lamination

Red*-Blk – Primary (Tube side)
Yel-Grn*, Yel/Blk – Blu – Secondary (XLR side)
Red/Blk* – Blk – Tertiary (FB)
Yel – shield
* – begin
