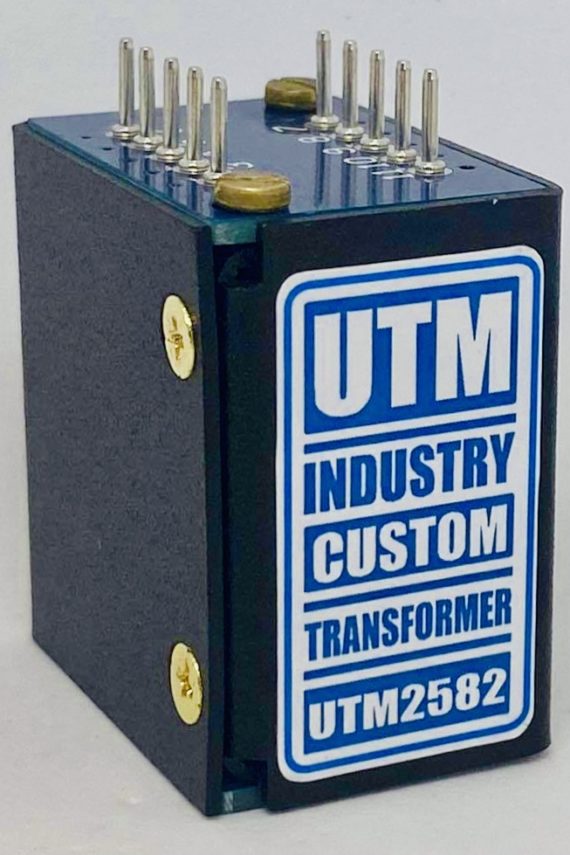

UTM2582
This is 1:7 line input, high ratio, 600:30kCT transformer, (2.4k:30kCT, 600:7.5k possible configurations).
Description
A high performance, audio signal transformer for line level input applications. Useful for providing a 5 to 18 dB gain for any high impedance input. Suitable for any source balanced or unbalanced not exceeding 50 kΩ.
RATIO: (1+1):(3.5+3.5)
IMPEDANCE: 2.4k:7.5k, 2.4k:30k, 600:7.5k, 600:30k
FREQUENCY RESPONSE @10kΩ source 10kΩ load: +/- 0.5 dB 15 Hz to 80 kHz (Ap)
Primary INDUCTANCE: 2.5H+2.5H @100Hz
Pecondary INDUCTANCE: 230H+230H @100Hz
Total DC RESISTANCE PRI: 10Ω+10Ω
Total DC RESISTANCE SEC: 550Ω+550Ω
MAX LEVEL: @50Hz: +26 dBu
Mu-Metal, High Nickel Core, 79% Nickel Steel lamination
Additional information
| Weight | 0.2 kg |
|---|
Downloads
Related products
UTM2510
This is 1:9.1 mic or line input, high ratio, 600:50k, transformer. Recommended for vintage Teletronix LA-2A and UA175. Also suitable as a high-ratio input transformer with high level capability for…
UTM2522
This is 1:4 or 1:8 mic or line input, high ratio, 150/600:10k, transformer. Recommended for vintage API circuits. Also suitable as a high-ratio input transformer with high level capability for tube…
UTM2581
The UTM2581 is a line level to high impedance tube stage input transformer. It works perfectly as a Vari Mu input transformer with the secondary CT. 600:15CTk, 1:5 ratio.

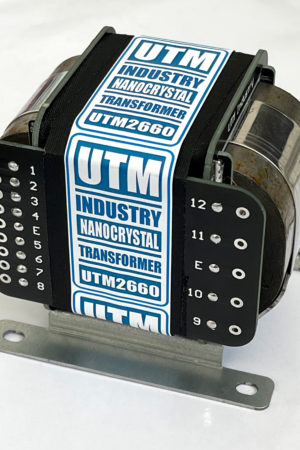

UTM2660
