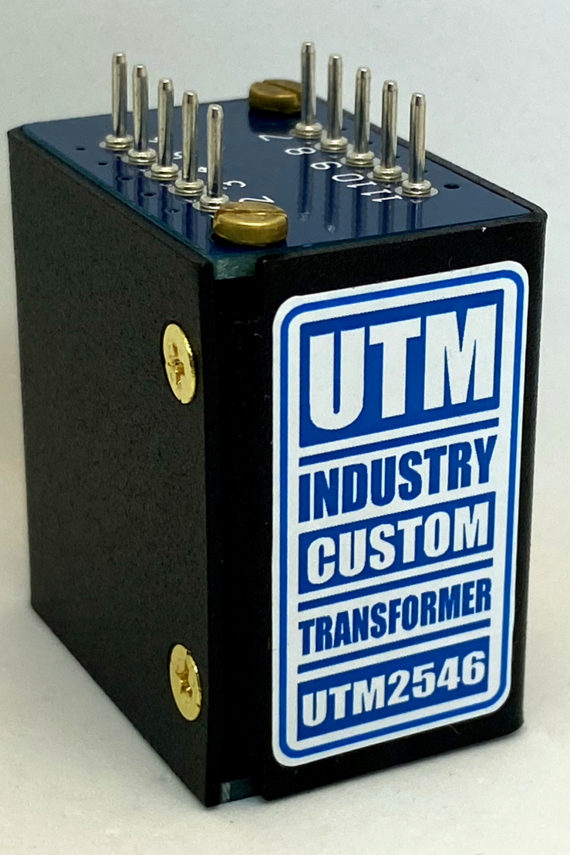

UTM2546
Line level, (2+2):(1+1) transformer.
Recommended for any kind of NEVE-ish line inputs.
Description
A high performance, audio signal transformer for line level input applications. Useful for providing a 6 dB gain for any high impedance input. Suitable for any source balanced or unbalanced not exceeding 5 kΩ. Works also well in the reverse (1:2). Dedicated to 1073 Neve style line input.
Ratio: (2+2):(1+1)
Impedance: 10k:2.4k, 10k:600Ω, 2.4k:2.4k, 2.4k:600
Frequency Response @10kΩ source 10kΩ load: +/- 0.5 dB 15 Hz to 80 kHz (Ap)
Primary Inductance: 70H+70H @100Hz
Secondary Inductance: 8H+8H @100Hz
Total DC Resistance PRI: 240Ω
Total DC Resistance SEC: 100Ω
Max Level: @50Hz: +30 dBu
Mu-Metal, High Nickel Core, 79% Nickel Steel lamination
Additional information
| Weight | 0.2 kg |
|---|
